wavelength:
Type:
DBR Laser Diode
Chip Architecture:
Low Power $769
Power:
40 mW
- 200 mW
Mounting:
Mode Hop Free (MHF) $700
Packaging:
Chip on Submount (CoS)
PRODUCT DESCRIPTION
The 976 nm DBR Series of high-performance edge-emitting laser diodes are based on Photodigm’s advanced monolithic single-frequency Gallium Arsenide (GaAs) based laser technology. It provides a single spatial mode beam and has passivated facets for reliability. The 976 nm Series DBR devices are used in optical coherence tomography (OCT) and other biomedical imaging and sensing applications.
Chip Architecture Description
This laser diode is based on Photodigm's proprietary Distributed Bragg Reflector (DBR) design. It is augmented by the Low Power laser diode architecture, a product designed for applications where low threshold currents are desired and power output isn't application critical. Power output is between 4000 mW
Package Add-on description:

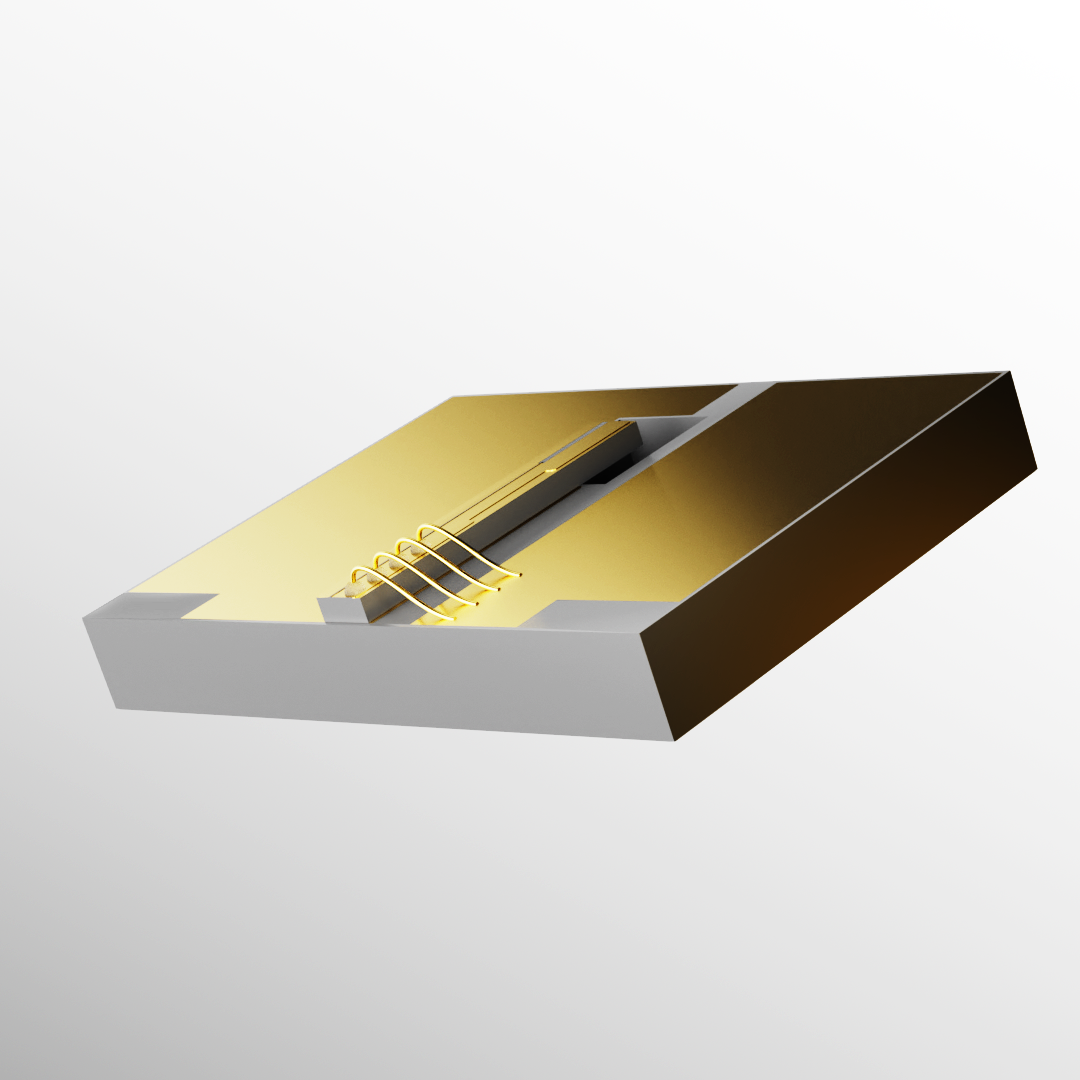

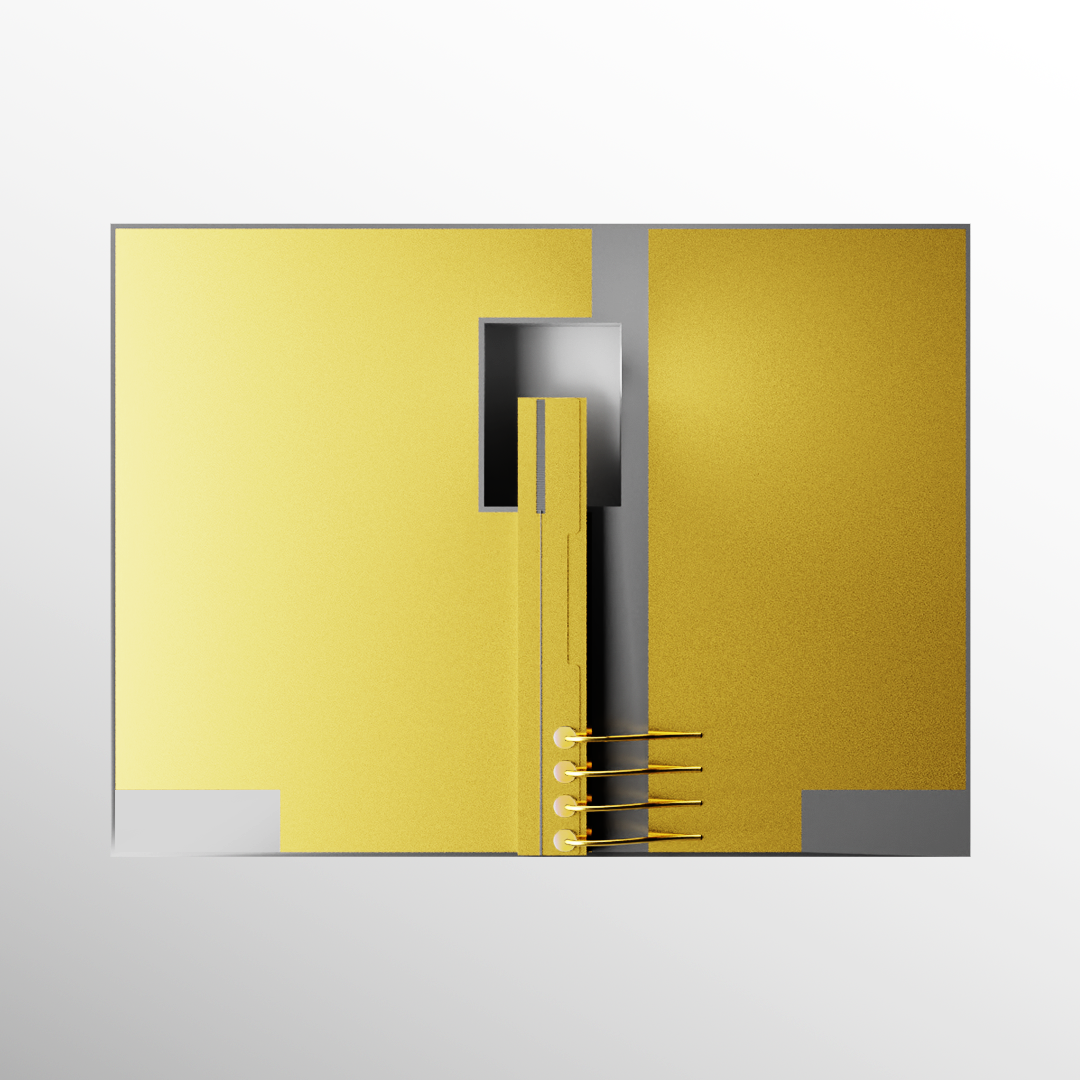

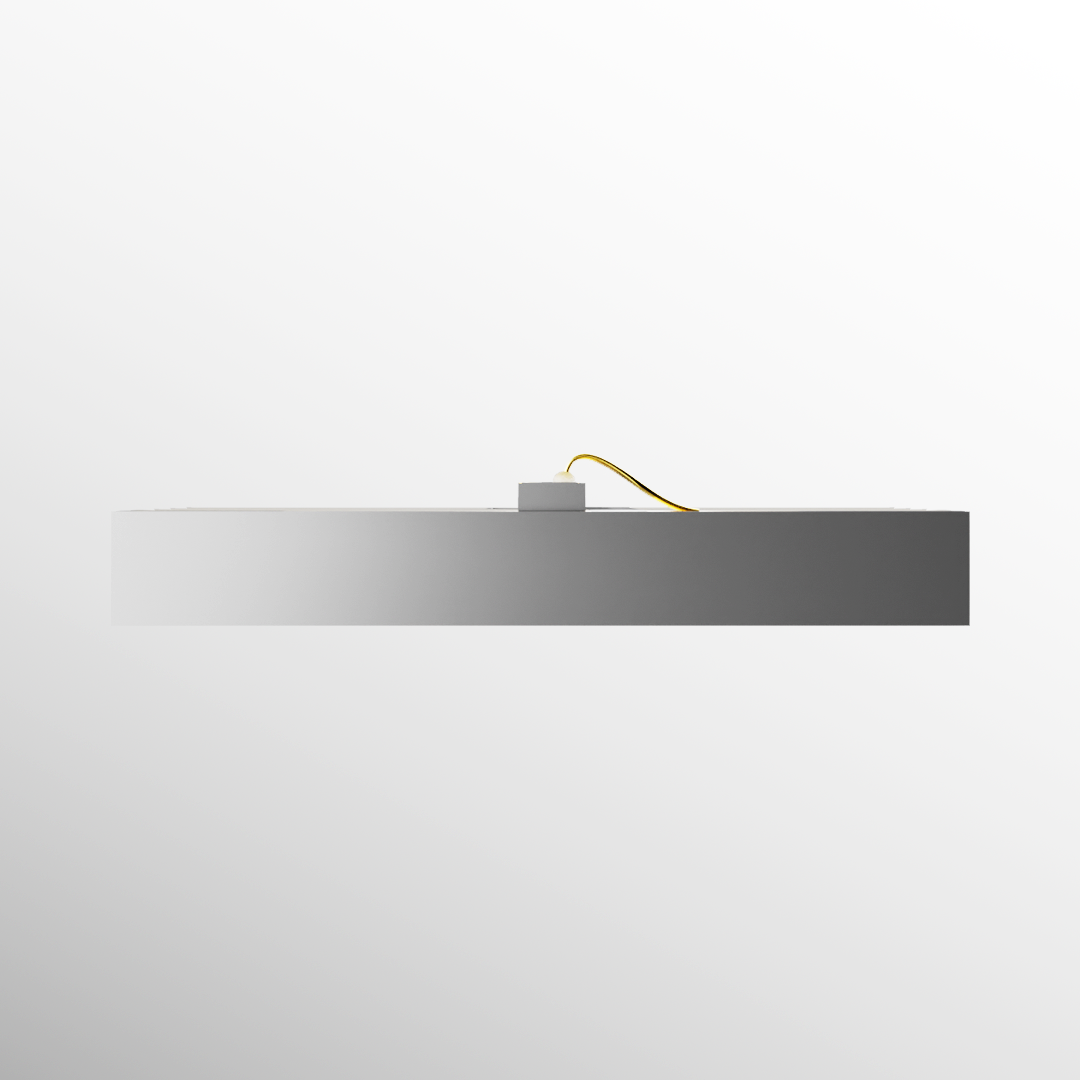

Chip on submount (CoS) is the most fundamental packaging option offered. The laser diode sits on a 2.8x3.8x0.5 mm^3 metallized submount. They are the perfect platform for designing your own package around and creative engineering. The Mode-Hop Free (MHF) add-on is ideal for applications where tunability is critical, removing the mode-hops for consistent power and wavelength tuning by controlling current.
PRICE: $3,450.00
976 nm single-frequency DBR Low Power Chip Architecture ($769) with output power of 4000 mW, Mode Hop Free Mounting ( $700), chip on submount, for a total unit cost of $1469
HOW TO ORDER
Contact us for your custom quote, special frequency selection, and certification to certain atomic absorption lines. Contact us for product availability, more information on volume discounts, and any questions!
Shipping Lead time
1 Week
