wavelength:
Type:
DBR Laser Diode
Chip Architecture:
Low Power $1,999
Power:
30 mW
- 60 mW
Mounting:
Mode Hop Free (MHF) $700
Packaging:
IsoBragg Package $1800
PRODUCT DESCRIPTION
The 852.347 nm DBR Series of high-performance edge-emitting laser diodes are based on Photodigm’s advanced monolithic single-frequency Gallium Arsenide (GaAs) based laser technology. It provides a single spatial mode beam and has passivated facets for reliability. The 852.347 nm Series DBR devices are used in atomic spectroscopy for cesium-based (Cs) and Raman spectroscopy applications. The 852.347 nm Series DBR devices are Spectroscopy Certified; guaranteed to hit the Cs D2 transition ¨± 10 ¨?C from room temperature.
Chip Architecture Description
This laser diode is based on Photodigm's proprietary Distributed Bragg Reflector (DBR) design. It is augmented by the Low Power laser diode architecture, a product designed for applications where low threshold currents are desired and power output isn't application critical. Power output is between 30-60 mW

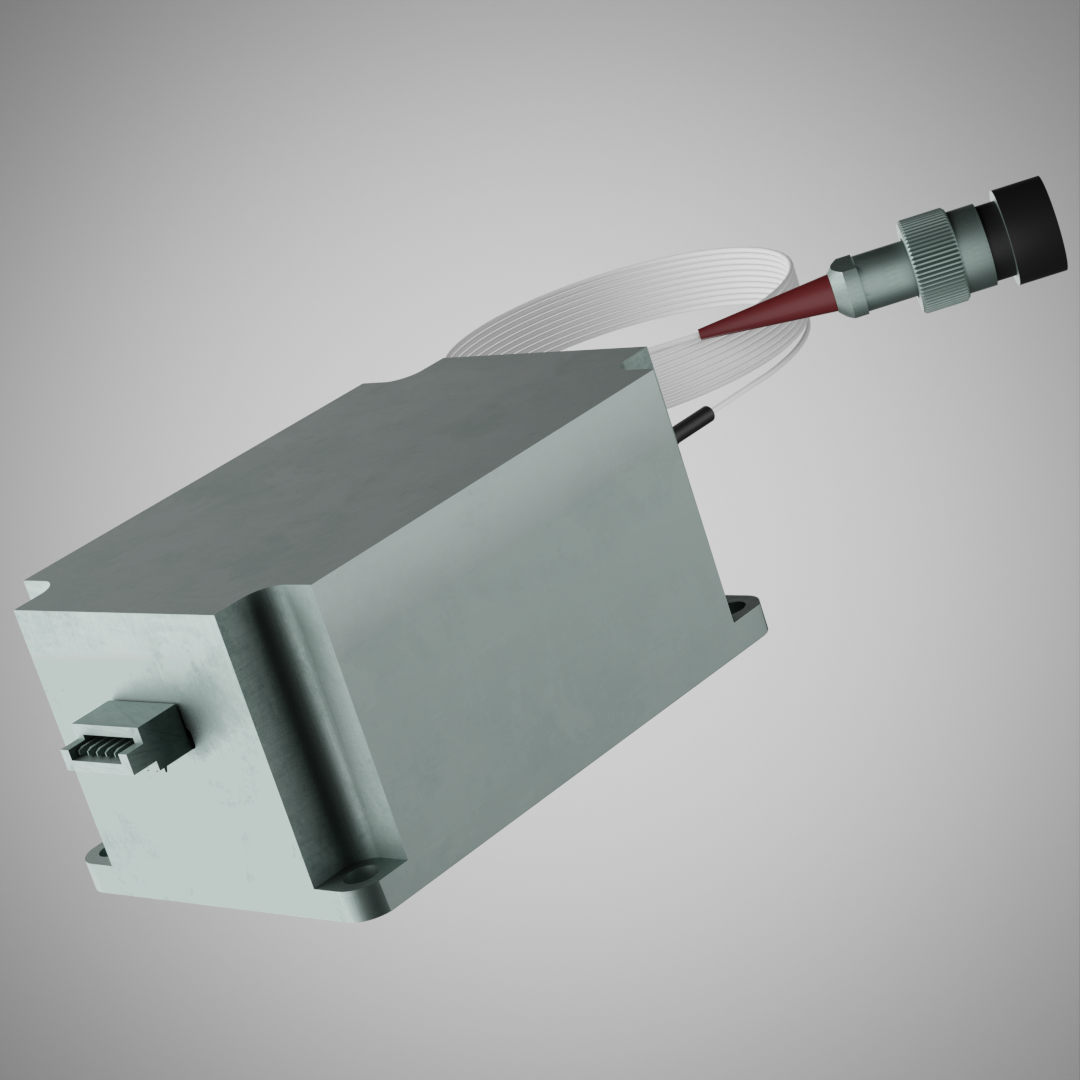

Package Add-on description:
The IsoBraggÇ—¢ is the new line of high-powered fiber-coupled optically isolated laser diode packages with superior power performance in a portable size (84.4 x 40.0 x 29.4 mm). The IsoBraggÇ—¢ leverages the accuracy and precision of an edge-emitting Photodigm Distributed Bragg Reflector (DBR) laser diode, designed from its proprietary monolithic single-frequency Gallium Arsenide (GaAs) advanced laser technology. The package provides a single spatial mode beam coupled into a 1-meter-length polarization maintaining (PM) fiber affixed with an FC/APC male output connector.The Mode-Hop Free (MHF) add-on is ideal for applications where tunability is critical, removing the mode-hops for consistent power and wavelength tuning by controlling current.
PRICE: $4,499.00
852.347 nm single-frequency DBR Low Power Chip Architecture ($1999) with output power of 30-60 mW, Mode Hop Free Mounting ( $700), in an IsoBragg Package ( $1800), for a total unit cost of $5250
HOW TO ORDER
Contact us for your custom quote, special frequency selection, and certification to certain atomic absorption lines. Contact us for product availability, more information on volume discounts, and any questions!
Shipping Lead time
2 weeks
