wavelength:
Type:
DBR Laser Diode
Chip Architecture:
Low Power $1,999
Power:
40 mW
- 120 mW
Mounting:
MHF VPS $1,400
Packaging:
TO-8 $500
PRODUCT DESCRIPTION
The 1083.33 nm DBR Series of high-performance edge-emitting laser diodes are based on Photodigm’s advanced monolithic single-frequency Gallium Arsenide (GaAs) based laser technology. It provides a single spatial mode beam and has passivated facets for reliability. The 1083.33 nm Series DBR devices are used in atomic spectroscopy for metastable Helium-based (He*) applications. The 1083.33 nm Series DBR devices are Spectroscopy Certified; guaranteed to hit the He*transition ¬®¬± 10 ¬®?C from room temperature.
Chip Architecture Description
This laser diode is based on Photodigm's proprietary Distributed Bragg Reflector (DBR) design. It is augmented by the Low Power laser diode architecture, a product designed for applications where low threshold currents are desired and power output isn't application critical. Power output is between 40-120 mW
Package Add-on description:

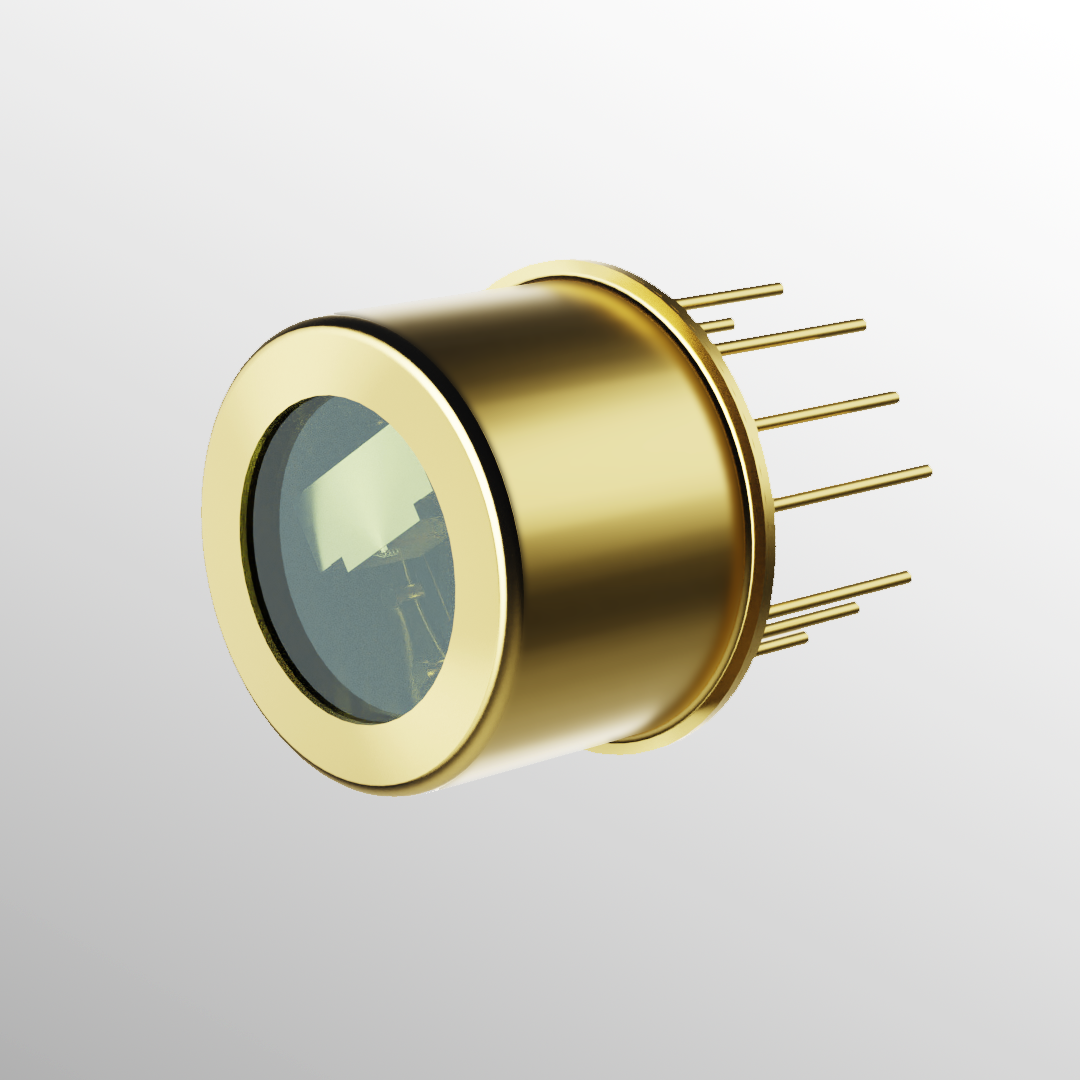

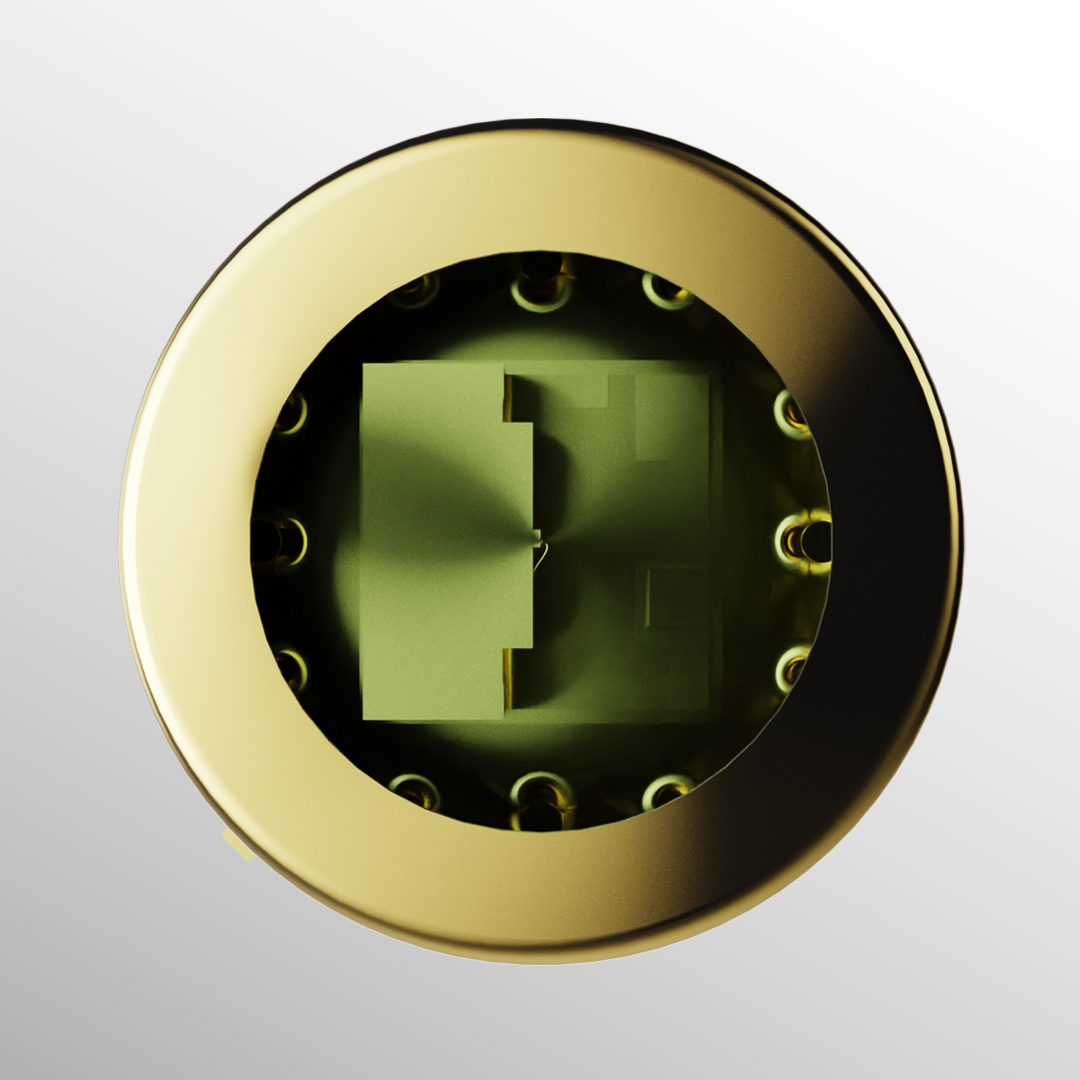

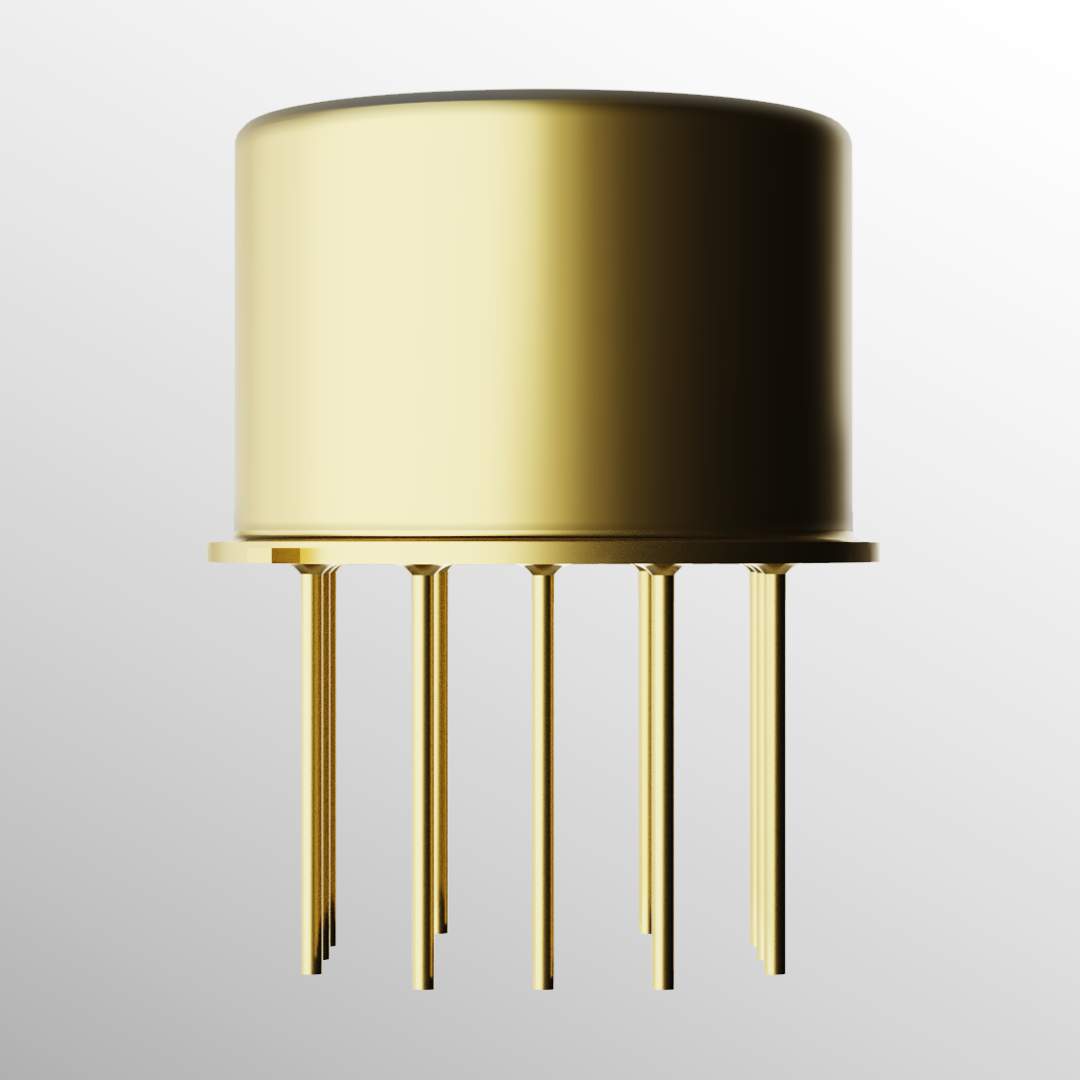

The TO-8 package include every optional package add on, thermoelectric cooler (TEC), photodiode, and thermistor in one convienent package with optional hermetic sealing. This is one of the best packages for OEM integration where protection from ambient is important and on-chip information is critical. The combination of Mode-Hop Free (MHF) and Virtual Point Source (VPS) Lens provides a dynamic combination of consistent tunability across the power and wavelength range in a easy to direct couple package.
PRICE: $3,899.00
1083.33 nm single-frequency DBR Low Power Chip Architecture ($1999) with output power of 40-120 mW, Mode Hop Free Mounting ( $700), Virtual Point Source (VPS) Lens ( $700), in a TO-8 Package ( $500) with an angled window cap, for a total unit cost of $4650
HOW TO ORDER
Contact us for your custom quote, special frequency selection, and certification to certain atomic absorption lines. Contact us for product availability, more information on volume discounts, and any questions!
Shipping Lead time
Contact Sales For Lead Time
NEED A HEAT SINK MOUNT?
Photodigm’s T8 Mount provides easy connections between our TO-8 packaged DBR, an external laser diode controller, and an external thermoelectric cooler controller.
